Step 12: Make a Search Bookmarkable
In this step we will make the search bookmarkable. This allows users to search for employees in the Employees table and they can bookmark their search query or share the URL.

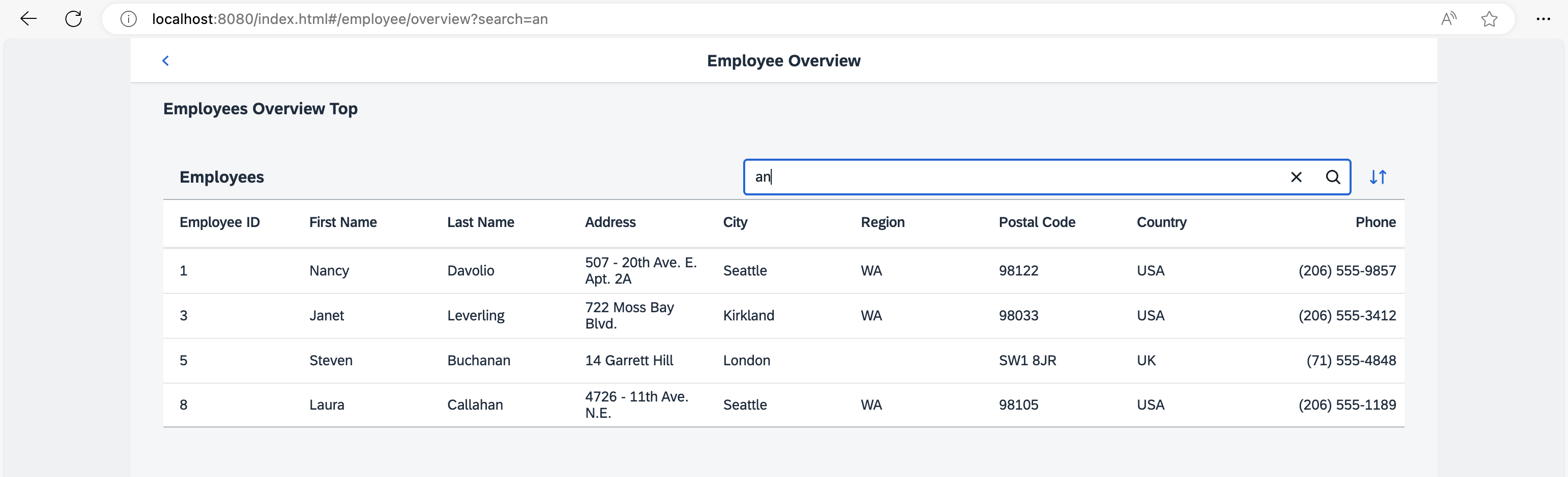

Preview
Search and sorting bookmarkable
Coding
You can view this step live: 🔗 Live Preview of Step 12.
webapp/manifest.json
{
"_version": "2.8.0",
"sap.app": {
...
},
"sap.ui": {
...
},
"sap.ui5": {
...
"routing": {
"config": {
"routerClass": "sap.m.routing.Router",
"type": "View",
"viewType": "XML",
"path": "ui5.tutorial.navigation.view",
"controlId": "app",
"controlAggregation": "pages",
"transition": "slide",
"bypassed": {
"target": "notFound"
}
},
"routes": [{
"pattern": "",
"name": "appHome",
"target": "home"
}, {
"pattern": "employees",
"name": "employeeList",
"target": "employees"
}, {
"pattern": "employees/overview:?query:",
"name": "employeeOverview",
"target": ["employeeOverviewTop", "employeeOverviewContent"]
}, {
"pattern": "employees/{employeeId}",
"name": "employee",
"target": "employee"
}, {
"pattern": "employees/{employeeId}/resume:?query:",
"name": "employeeResume",
"target": "employeeResume"
}],
"targets": {
...
}
}
}
}
In order to make the search bookmarkable we have to think about how the pattern of the corresponding route should match the bookmark. We decide to allow /#/employees/overview?search=mySearchQueryString in order to bookmark a search. Therefore, we simply extend our routing configuration a little. We add the optional :?query: parameter to the route employeeOverview. We keep in mind that we want to use search as the URL parameter for the search term that was entered in the search field.
webapp/controller/employee/overview/EmployeeOverviewContent.controller.?s
import SearchField, { SearchField$SearchEvent } from "sap/m/SearchField";
import Table from "sap/m/Table";
import ViewSettingsDialog, { ViewSettingsDialog$ConfirmEvent } from "sap/m/ViewSettingsDialog";
import ViewSettingsItem from "sap/m/ViewSettingsItem";
import BaseController from "ui5/tutorial/navigation/controller/BaseController";
import Filter from "sap/ui/model/Filter";
import FilterOperator from "sap/ui/model/FilterOperator";
import ListBinding from "sap/ui/model/ListBinding";
import Sorter from "sap/ui/model/Sorter";
import { Route$MatchedEvent } from "sap/ui/core/routing/Route";
/**
* @namespace ui5.tutorial.navigation.controller.employee.overview
*/
export default class EmployeeOverviewContent extends BaseController {
private table: Table;
private viewSettingsDialog: ViewSettingsDialog;
private sortField: string | null = null;
private sortDescending: boolean = false;
private validSortFields: string[] = ["EmployeeID", "FirstName", "LastName"];
private searchQuery: string | null = null;
private routerArgs: any = null;
public onInit(): void {
const router = this.getRouter();
this.table = (<Table> this.byId("employeesTable"));
this._initViewSettingsDialog();
// make the search bookmarkable
router.getRoute("employeeOverview").attachMatched(this._onRouteMatched, this);
}
private _onRouteMatched(event: Route$MatchedEvent): void {
// save the current query state
this.routerArgs = event.getParameter("arguments");
this.routerArgs["?query"] ||= {};
// search/filter via URL hash
this._applySearchFilter(this.routerArgs["?query"].search);
}
public onSortButtonPressed(): void {
this.viewSettingsDialog.open();
}
public onSearchEmployeesTable(event: SearchField$SearchEvent): void {
const router = this.getRouter();
// update the hash with the current search term
this.routerArgs["?query"].search = event.getSource().getValue();
router.navTo("employeeOverview", this.routerArgs, true /*no history*/);
}
...
}
sap.ui.define(["sap/m/ViewSettingsDialog", "sap/m/ViewSettingsItem", "ui5/tutorial/navigation/controller/BaseController", "sap/ui/model/Filter", "sap/ui/model/FilterOperator", "sap/ui/model/Sorter"], function (ViewSettingsDialog, ViewSettingsItem, BaseController, Filter, FilterOperator, Sorter) {
"use strict";
const EmployeeOverviewContent = BaseController.extend("ui5.tutorial.navigation.controller.employee.overview.EmployeeOverviewContent", {
constructor() {
BaseController.prototype.constructor.apply(this, arguments);
this.sortField = null;
this.sortDescending = false;
this.validSortFields = ["EmployeeID", "FirstName", "LastName"];
this.searchQuery = null;
this.routerArgs = null;
},
onInit() {
const router = this.getRouter();
this.table = this.byId("employeesTable");
this._initViewSettingsDialog();
// make the search bookmarkable
router.getRoute("employeeOverview").attachMatched(this._onRouteMatched, this);
},
_onRouteMatched(event) {
// save the current query state
this.routerArgs = event.getParameter("arguments");
this.routerArgs["?query"] ||= {};
// search/filter via URL hash
this._applySearchFilter(this.routerArgs["?query"].search);
},
onSortButtonPressed() {
this.viewSettingsDialog.open();
},
onSearchEmployeesTable(event) {
const router = this.getRouter();
// update the hash with the current search term
this.routerArgs["?query"].search = event.getSource().getValue();
router.navTo("employeeOverview", this.routerArgs, true /*no history*/);
},
_initViewSettingsDialog() {
this.viewSettingsDialog = new ViewSettingsDialog("vsd", {
confirm: event => {
const sortItem = event.getParameter("sortItem");
this._applySorter(sortItem.getKey(), event.getParameter("sortDescending"));
}
});
// init sorting (with simple sorters as custom data for all fields)
this.viewSettingsDialog.addSortItem(new ViewSettingsItem({
key: "EmployeeID",
text: "Employee ID",
selected: true // by default the MockData is sorted by EmployeeID
}));
this.viewSettingsDialog.addSortItem(new ViewSettingsItem({
key: "FirstName",
text: "First Name",
selected: false
}));
this.viewSettingsDialog.addSortItem(new ViewSettingsItem({
key: "LastName",
text: "Last Name",
selected: false
}));
},
_applySearchFilter(searchQuery) {
// first check if we already have this search value
if (this.searchQuery === searchQuery) {
return;
}
this.searchQuery = searchQuery;
this.byId("searchField").setValue(searchQuery);
let filter = null;
// add filters for search
if (searchQuery?.length > 0) {
const filters = [];
filters.push(new Filter("FirstName", FilterOperator.Contains, searchQuery));
filters.push(new Filter("LastName", FilterOperator.Contains, searchQuery));
filter = new Filter({
filters: filters,
and: false
}); // OR filter
}
// update list binding
const binding = this.table.getBinding("items");
binding.filter(filter, "Application");
},
/**
* Applies sorting on our table control.
* @param {string} fieldName the name of the field used for sorting
* @param {string | boolean} sortDescending true or false as a string or boolean value to specify a descending sorting
* @private
*/
_applySorter(fieldName, sortDescending) {
// only continue if we have a valid sort field
if (fieldName && this.validSortFields.includes(fieldName)) {
let descending;
// convert the sort order to a boolean value
if (typeof sortDescending === "string") {
descending = sortDescending === "true";
} else if (typeof sortDescending === "boolean") {
descending = sortDescending;
} else {
descending = false;
}
// sort only if the sorter has changed
if (this.sortField && this.sortField === fieldName && this.sortDescending === descending) {
return;
}
this.sortField = fieldName;
this.sortDescending = descending;
const sorter = new Sorter(fieldName, descending);
// sync with View Settings Dialog
this._syncViewSettingsDialogSorter(fieldName, descending);
const binding = this.table.getBinding("items");
binding.sort(sorter);
}
},
_syncViewSettingsDialogSorter(sortField, sortDescending) {
// the possible keys are: "EmployeeID" | "FirstName" | "LastName"
// Note: no input validation is implemented here
this.viewSettingsDialog.setSelectedSortItem(sortField);
this.viewSettingsDialog.setSortDescending(sortDescending);
}
});
return EmployeeOverviewContent;
});
Now we handle the optional query parameter from the employeeOverview route in our EmployeeOverviewContent controller. First we change the onInit function by adding an event listener for the matched event of the employeeOverview route. Then we buffer the current router arguments as received from the event. If a query is available, the result from event.getParameter("arguments") will contain a ?query property with an object of all URL parameters specified, otherwise it is undefined. If no query parameter is defined, we always initialize the query and save it to this.routerArgs["?query"]. If we have a search term query at the search key we continue and call this._applySearchFilter(this.routerArgs["?query"].search) to trigger a search based on the search query parameter from the URL.
Storing the arguments objects internally in the controller is important, because we will use the current arguments when calling navTo() in the search event handler onSearchEmployeesTable and pass on the arguments with the updated search term. We keep the URL and the UI in sync by navigating to the current target again with the current value of the search field from the event’s source. The search value is stored in this.routerArgs["?query"].search together with the other query parameters and it is passed directly to the router again
That’s it, now our search is bookmarkable and reflected in the URL. Try to access the following pages in your browser:
-
webapp/index.html#/employees/overview -
webapp/index.html#/employees/overview?search= -
webapp/index.html#/employees/overview?search=an
When you change the value in the search field, you see that the hash updates accordingly.
