Step 5: Display a Target Without Changing the Hash

In this step, you will learn more about targets and how to display a target from the routing configuration manually.

We will display the Not Found target from the previous step without changing the hash to illustrate this navigation pattern. We will also consider a side-effect that prevents us from navigating back in this case.

Fortunately, we can extend our app and offer an easy solution. There are some use cases that should not be persisted in the URL but just be triggered by the application logic if needed. A target is a navigation-related configuration for a view and we can display targets manually without referencing them in a navigation route. Good examples for this are temporary errors, switching to an edit page for a business object, or going to a Settings page. Sometimes you will also have to implement a way back manually.

Preview

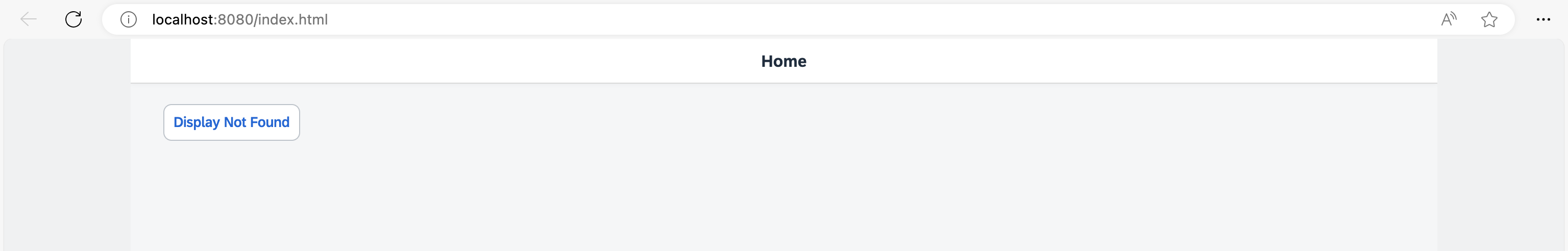

The new Home page with a navigation button

Coding

You can view this step live: 🔗 Live Preview of Step 5.

webapp/view/Home.view.xml

<mvc:View
  controllerName="ui5.tutorial.navigation.controller.Home"
  xmlns="sap.m"
  xmlns:mvc="sap.ui.core.mvc">
  <Page
    title="{i18n>homePageTitle}"
    titleAlignment="Center"
    class="sapUiResponsiveContentPadding">
    <content>
      <Button id="displayNotFoundBtn" text="{i18n>DisplayNotFound}" press=".onDisplayNotFound" class="sapUiTinyMarginEnd"/>
    </content>
  </Page>
</mvc:View>

We start by changing the Button control from the home view. When the button is pressed, the onDisplayNotFound handler is called.

webapp/controller/Home.controller.?s

import BaseController from "ui5/tutorial/navigation/controller/BaseController";

/**
 * @namespace ui5.tutorial.navigation.controller
 */
export default class Home extends BaseController {

	public onDisplayNotFound(): void {
		// display the "notFound" target without changing the hash
		this.getRouter().getTargets().display("notFound");
	}
}

sap.ui.define(["ui5/tutorial/navigation/controller/BaseController"], function (BaseController) {
	"use strict";

	const Home = BaseController.extend("ui5.tutorial.navigation.controller.Home", {
		onDisplayNotFound() {
			// display the "notFound" target without changing the hash
			this.getRouter().getTargets().display("notFound", {
				fromTarget: "home"
			});
		}
	});
	return Home;
});

Inside the onDisplayNotFound handler we get a reference to the Targets helper object of the router and simply call display("notFound"). The view associated to the target with the name notFound from the routing configuration will be displayed by the router without changing the hash.

The sap.m.routing.Targets object itself can be retrieved by calling getTargets() on the router. It provides a convenient way for placing views into the correct containers of your application. The main benefits of targets are structuring and lazy loading: you just configure the views in the routing configuration and you do not have to load the views until you really need them.

:note: In the example code we get a reference to the sap.m.routing.Targets object by calling getTargets() on this.getRouter() from the base controller. However, you could also get a reference to the sap.m.routing.Targets object by calling this.getOwnerComponent().getRouter().getTargets() or this.getOwnerComponent().getTargets().

If you now call the app and press the Display Not Found button you see that the notFound target is displayed without changing the URL. That was easy, but suddenly our app’s Back button does not work anymore. The bug we have just introduced illustrates an interesting navigation trap. The application hash is still empty since we just display the target and did not hit a route.

When pressing the app’s Back button, the onNavBack from the previous step is called. It detects that there is no previous hash and therefore tries to navigate to the appHome route again. The router is smart enough to detect that the current hash did not change and therefore skips the navigation to the route. Fortunately, there is an easy workaround for us. However, we need to touch the Home controller again.

webapp/controller/Home.controller.?s (Changed Again)

import BaseController from "ui5/tutorial/navigation/controller/BaseController";

/**
 * @namespace ui5.tutorial.navigation.controller
 */
export default class Home extends BaseController {

	public onDisplayNotFound(): void {
		// display the "notFound" target without changing the hash
		this.getRouter().getTargets().display("notFound", {
			fromTarget: "home"
		});
	}
}

sap.ui.define(["ui5/tutorial/navigation/controller/BaseController"], function (BaseController) {
	"use strict";

	const Home = BaseController.extend("ui5.tutorial.navigation.controller.Home", {
		onDisplayNotFound() {
			// display the "notFound" target without changing the hash
			this.getRouter().getTargets().display("notFound", {
				fromTarget: "home"
			});
		}
	});
	return Home;
});

This time we pass on a data object as the second parameter for the display method which contains the name of the current target; the one from which we navigate to the notFound target. We decide to choose the key fromTarget but since it is a custom configuration object any other key would be fine as well.

webapp/controller/NotFound.controller.?s

import BaseController from "ui5/tutorial/navigation/controller/BaseController";
import Target, { Target$DisplayEvent } from "sap/ui/core/routing/Target";

/**
 * @namespace ui5.tutorial.navigation.controller
 */
export default class NotFound extends BaseController {

	private data: any;

	public onInit(): void {
		const router = this.getRouter();
		const target = (<Target> router.getTarget("notFound"));

		target.attachDisplay((event: Target$DisplayEvent) => {
			this.data = event.getParameter("data"); // store the data
		}, this);
	}

	// override the parent's onNavBack (inherited from BaseController)
	public onNavBack(): void {

		// in some cases we could display a certain target when the back button is pressed
		if (this.data?.fromTarget) {
			this.getRouter().getTargets().display(this.data.fromTarget);
			delete this.data.fromTarget;

			return;
		}

		// call the parent's onNavBack
		super.onNavBack();
	}
}

sap.ui.define(["ui5/tutorial/navigation/controller/BaseController"], function (BaseController) {
	"use strict";

	const NotFound = BaseController.extend("ui5.tutorial.navigation.controller.NotFound", {
		onInit() {
			const router = this.getRouter();
			const target = router.getTarget("notFound");
			target.attachDisplay(event => {
				this.data = event.getParameter("data"); // store the data
			}, this);
		},
		// override the parent's onNavBack (inherited from BaseController)
		onNavBack() {
			// in some cases we could display a certain target when the back button is pressed
			if (this.data?.fromTarget) {
				this.getRouter().getTargets().display(this.data.fromTarget);
				delete this.data.fromTarget;
				return;
			}

			// call the parent's onNavBack
			BaseController.prototype.onNavBack.call(this);
		}
	});
	return NotFound;
});

Next, we have to register an event handler to the display event of the notFound target. The best place to register this event handler is inside the onInit hook of our NotFound controller. There we can access and store the custom data that we are passing on when displaying the target manually.

From the router reference we can fetch a reference to the notFound target. Each target configuration will create a runtime object that can be accessed through the router.

Similar to SAPUI5 controls, targets define API methods and events that can be attached. We attach a display event handler and save the configuration that was received as the event parameter data in an internal controller variable this.data. This also includes the fromTarget information in case the caller passed it on. However, we now have to override the base controller’s onNavBack implementation to change the behavior a bit. We add a special case for our Back functionality in case the fromTarget property has been passed on. If specified, we simply display the target defined as fromTarget manually the same way we actually called the notFound target manually. Otherwise we just call the onNavBack implementation in the BaseController.

webapp/i18n/i18n.properties

...
DisplayNotFound=Display Not Found

Add the new property to the i18n.properties file.

When we now click the Back button, it works as expected and brings us back to the overview page, also when the Not Found view is displayed manually.

Conventions

• Display targets manually if you want to trigger a navigation without changing the hash

• Think carefully about all navigation patterns in your application, otherwise the user might get stuck

---

---
