Binding Syntax

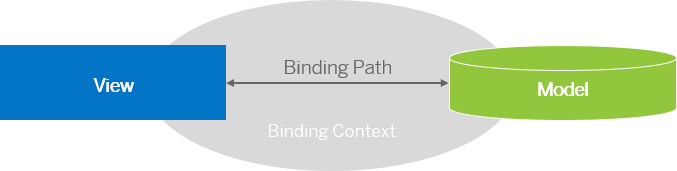

You bind UI elements to data of a data source by defining a binding path to the model that represents the data source in the app.

---

When defining a binding path for a control, a binding context is created which connects this control to a data model. The UI control then gets the data through that context and displays it on the screen.

---

Simple Binding

To reference model data in a view , you can use the simple binding syntax “{/path/to/data}”:

<Input value="{/firstName}"/>

You can add other properties, such as formatters, data types, or events:

• Data type:

  <mvc:View
      xmlns:core="sap.ui.core"
      xmlns:mvc="sap.ui.core.mvc"
      xmlns="sap.m"
      core:require="{StringType: 'sap/ui/model/type/String'}">

      <Input value="{path: '/firstName', type: 'StringType'}"/>


• Formatter:

  <mvc:View
      xmlns:core="sap.ui.core"
      xmlns:mvc="sap.ui.core.mvc"
      xmlns="sap.m"
      core:require="{globalFormatter: 'my/globalFormatter'}">

      <Input value="{path: '/firstName', formatter: 'globalFormatter'}"/>


• Event:

  <Input value="{path: '/firstName', events: {dataRequested: '.onMyDataRequested'}"/>


For more information, see Binding Path.

For more information about data types and formatters, see Formatting, Parsing, and Validating Data.

---

Composite Binding

If a control requires data from multiple different model properties, you use a parts array of paths to define composite binding paths:

<mvc:View
    xmlns:core="sap.ui.core"
    xmlns:mvc="sap.ui.core.mvc"
    xmlns="sap.m"
    core:require="{globalFormatter: 'my/globalFormatter'}">

    <TextArea binding="{birthday}" value="{
        parts: ['day', 'month'],
        formatter: 'globalFormatter'
    }"/>

For more information, see Composite Binding and Examples for Data Binding in Different View Types.

---

Expression Binding in XML Views

Expression binding is a simple way to calculate values directly in the view. For example, if you want to change the color of the price depending on whether it is above or below some threshold. With expression binding you don’t have to declare a separate formatter:

<ObjectStatus state="{= ${products>UnitPrice} > ${/priceThreshold} ? 'Error': 'Success' }"/>

For more information, see Expression Binding.

---

Property Metadata Binding for OData Services

With metadata binding, you can bind properties of a control to the corresponding property that is defined in the metadata of an OData service:

<Input maxLength="{/#Company/ZipCode/@maxLength}"/>

For more information, see Property Metadata Binding.

---

Escaping Binding Syntax

To prevent string values from being misinterpreted as binding expressions in ManagedObject’s constructor settings or applySettings, use the static helper function sap/ui/base/ManagedObject.escapeSettingsValue, which escapes special characters, such as curly braces ({}):

// ManagedObject required from "sap/ui/base/ManagedObject"
// Calling the constructor with the settings object
new MyTextControl({ // or in applySettings({ ...
    text: ManagedObject.escapeSettingsValue(textFromBob) // no binding intended
});

Especially if the given value is not under your control, e.g. a value from users or data services, omitting escapeSettingsValue in the above scenario can lead to a SyntaxError reporting “no closing braces found”, or getProperty returning undefined due to the framework interpreting unintended binding expressions.

In contrast, ManagedObject’s setProperty does not check for bindings and can be used without escapeSettingsValue:

new MyTextControl().setText(textFromBob);

Note:

To use composite binding, expression binding, and the escapeSettingsValue function, the OpenUI5 bootstrap configuration parameter sap-ui-compatVersion must be set to edge.

• Binding Path
  Binding paths address the different properties and lists in a model and define how a node in the hierarchical data tree can be found.
• Composite Binding
  Calculated fields enable the binding of multiple properties in different models to a single property of a control.
• Expression Binding
  Expression binding is an enhancement of the OpenUI5 binding syntax, which allows for providing expressions instead of custom formatter functions.
• Property Metadata Binding
  An extended data binding syntax makes it possible to access the metadata for certain properties of an entity in OData services, such as heading, label, and precision.
• Examples for Data Binding in Different View Types
  Examples how complex syntax can be used for calculated fields in XML, HTML, and JS views.

Related Information

API Reference: sap.ui.base.ManagedObject.bindProperty

API Reference: sap.ui.base.ManagedObject.bindAggregation

API Reference: sap.ui.base.ManagedObject.bindObject
