Step 2: Enable Routing

In this step we will modify the app and introduce routing. Instead of having the home page of the app hard coded we will configure a router to wire multiple views together when our app is called. The routing configuration controls the application flow when the user triggers a navigation action or opens a link to the application directly.

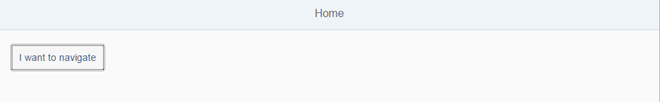

Preview

Views are wired together using the router

Coding

You can view and download all files in the Samples in the Demo Kit at Routing and Navigation - Step 2.

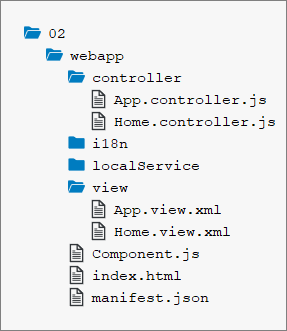

Folder structure for this step

webapp/manifest.json

{
   "_version": "1.12.0",
   "sap.app": {
      ...
   },
   "sap.ui": {
      ...
   },
   "sap.ui5": {

      "rootView": {
          "viewName": "sap.ui.demo.nav.view.App",
          "type": "XML",
          "async": true,
          "id": "app"
      },
      "dependencies": {
         ...
      },
      "models": {
         ...
      },
      "routing": {
         "config": {
            "routerClass": "sap.m.routing.Router",
            "type": "View",
            "viewType": "XML",
            "path": "sap.ui.demo.nav.view",
            "controlId": "app",
            "controlAggregation": "pages",
            "transition": "slide",
            "async": true
         },
         "routes": [{
            "pattern": "",
            "name": "appHome",
            "target": "home"
         }],
         "targets": {
            "home": {
               "id": "home",
               "name": "Home",
               "level" : 1
            }
         }
      }
   }
}

Single-page applications based on OpenUI5 can use a so-called “router” to dispatch hash-based URLs to one or more views of the app. Therefore, the router needs to know how to address and show the views. In OpenUI5, we can simply add a routing section to our existing sap.ui5 section in the descriptor file to configure the router. There are three properties that can be used to configure the routing of your application:

config

This section contains the global router configuration and default values that apply for all routes and targets. The property routerClass is special as it determines the router implementation. The default value is sap.ui.core.routing.Router. Here, we set the routerClass to sap.m.routing.Router, because we implement an app based on sap.m. All other properties in config are given to the router instance. For example, we define where our views are located in the app. To load and display views automatically, we also specify the controlId of the control that is used to display the pages and the aggregation (controlAggregation) that will be filled when a new page is displayed. We will create only XMLviews in this tutorial, so we can set the viewType property to XML. All our views will be available in the view folder of the namespace sap.ui.demo.nav, so we can set the path to sap.ui.demo.nav.view. The transition allows us to set a default value for how the transition should happen; you can choose between slide (default), flip, fade, and show. All parameters of the config section can be overruled in the individual route and target definitions if needed.

Note:

The possible values for routerClass are sap.ui.core.routing.Router, sap.m.routing.Router, or any other subclasses of sap.ui.core.routing.Router. Compared to sap.ui.core.routing.Router the sap.m.routing.Router is optimized for mobile apps and adds the properties level, transition and transitionParameters which can be specified for each route or target created by the sap.m.routing.Router. The transitionParameters can also be used for custom transitions. Please check the API Reference for more information.
routes

Each route defines a name, a pattern, and one or more targets to navigate to when the route has been hit. The pattern is basically the hash part of the URL that matches the route. The sequence of the routes is important because only the first matched route is used by the router. In our case, we have an empty pattern to match the empty hash. The name property allows you to choose a unique route name that helps you to navigate a specific route or to determine the matched route in one of the matched handlers (we’ll explain that in a later step). The target property references one or more targets from the section below that will be displayed when the route has been matched.
targets

A target defines either a view that is displayed or a component that can be loaded and placed through its routing. In order to distinguish between these two target types, it is required to define the type property and set it either to View or Component. In this sample, we will focus on view targets and define the type property as View. A target is associated with one or more routes, or it can be displayed manually from within the app. Whenever a target is displayed, the corresponding view is loaded and added to the aggregation configured with the controlAggregation option of the control. This option is configured using controlId. Each target has a unique key (home). The name defines which view shall be loaded. In our little example, the absolute view path to be loaded for our home target is determined by the default "path": "sap.ui.demo.nav.view" and "name": "Home". This leads to "sap.ui.demo.nav.view.Home". The level property is especially relevant for flip and slide transitions. It helps the router to determine the direction of the transition from one page to another. (This will also be explained later.) A target can be assigned to a route, but it’s not necessary. Targets can be displayed directly in the app without hitting a route.

This basic routing configuration was easy enough. However, you can’t see it in action until you have initialized the router.

Note:

As of OpenUI5 version 1.30, we recommend that you define the routing in the manifest.json descriptor file using routes and targets. In older versions of OpenUI5, the routing configuration had to be done directly in the metadata section of the component, and with different syntax.

webapp/Component.js

sap.ui.define([
    "sap/ui/core/UIComponent"
], function (UIComponent) {
    "use strict";

    return UIComponent.extend("sap.ui.demo.nav.Component", {

        metadata: {
            manifest: "json"
        },

        init: function () {
            // call the init function of the parent
            UIComponent.prototype.init.apply(this, arguments);

            // create the views based on the url/hash
            this.getRouter().initialize();
        }
    });
});

We override the init function and call the parent’s init function first. We get a reference to the router and call initialize()on it. The router is instantiated automatically with the configuration loaded in the descriptor. The routing events and our configuration in the descriptor are now automatically enabled in the app. Running the app at this point would lead to an error, because the home view is not implemented yet.

webapp/view/App.view.xml

<mvc:View
	controllerName="sap.ui.demo.nav.controller.App"
	xmlns="sap.m"
	xmlns:mvc="sap.ui.core.mvc"
	displayBlock="true">
	<Shell>
		<App id="app"/>
	</Shell>
</mvc:View>

In the App view, we remove the content of App control. The pages will be added dynamically the way we have configured it in the descriptor. The view configured with the property rootView is automatically instantiated when the app is called initially.

webapp/view/Home.view.xml (New)

<mvc:View
   controllerName="sap.ui.demo.nav.controller.Home"
   xmlns="sap.m"
   xmlns:mvc="sap.ui.core.mvc">
   <Page title="{i18n>homePageTitle}" class="sapUiResponsiveContentPadding">
      <content>
         <Button text="{i18n>iWantToNavigate}" class="sapUiTinyMarginEnd"/>
      </content>
   </Page>
</mvc:View>

Create a file Home.view.xml in the webapp/view folder. The home view only contains a page control that displays a button. For illustration, we bind the title of the page to the i18n>homePageTitle, you can use data binding just the way you are used to it.

webapp/controller/Home.controller.js (New)

sap.ui.define([
   "sap/ui/core/mvc/Controller"
], function (Controller) {
   "use strict";

   return Controller.extend("sap.ui.demo.nav.controller.Home", {

   });

});

Create a file Home.controller.js in the webapp/controller folder. The controller for the home view does not contain any custom logic in this step, but we will add some features to it soon. Finally, run the app by calling the webapp/index.html file. This will be the entry point for our app in all the next steps. As you can see, the app is initially displaying the home view that we configured as the default pattern in the routing configuration. We have now successfully enabled routing in the app.

Note:

We think of routing as a set of features that dispatch hash-based URLs to an app’s views and manage the views’ states.

Based on the routing configuration, you define the navigation between pages and pass parameters to the target views.

Conventions

Configure the router in the manifest.json descriptor file
Initialize the router exactly once
Initialize the router in the component
